Double-Sided Clamshells

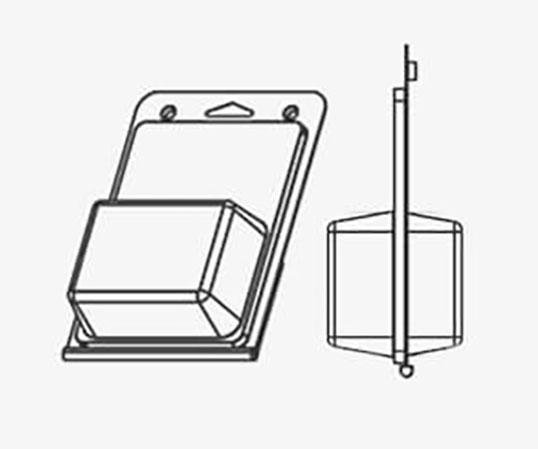

Double-sided cavity stock clamshell by Clamshell-Packaging
Double-Sided Clamshells

Can’t find what you need? 800-949-1141.


Cavities are tapered from open to closed end. Cavity dimensions represent the smallest dimensions, which occur at the closed end.

Part # Length “A” Width “B” Thickness Length “C” Width “D” Depth “E” Length “F” Width “H” Case Qty
283TF (S2) 7.000 5.000 0.020 2.062 3.062 2.500 5.750 4.343 350
282TF (S2) 7.000 5.000 0.020 2.312 3.375 2.834     400
586TF 10.875 6.812 0.015 4.821 5.887 2.438     250
422TF (S) 8.125 5.000 0.020 4.826 4.014 3.881     300
582TF 10.875 6.812 0.020 5.123 4.590 4.375     225
584TF 10.875 6.812 0.025 6.275 5.766 4.531     200
752TF 9.375 7.250 0.020 6.380 5.780 3.132     225
406TF (S) 8.125 5.000 0.020 6.700 4.075 2.900     300
581TF 10.875 6.812 0.015 8.209 5.970 2.468     250
820TF 11.000 6.800 0.019 9.000 5.828 3.000 9.500 6.340 160
506TF 10.750 5.125 0.020 9.024 4.385 3.063     300
504TF 10.750 5.125 0.015 9.164 4.130 2.50     350
579TF 10.875 6.812 0.015 9.250 5.750 2.250     250
590TF (S) 10.875 6.812 0.025 9.489 5.995 3.759     200
900TF (S) 11.062 9.375 0.025 9.500 8.250 4.500     150
1100TF (S) 12.000 12.000 0.018 10.500 11.000 3.000     150
601TF 14.500 5.125 0.020 12.875 4.332 3.017     200
602TF 14.500 5.125 0.020 12.875 4.332 3.750     200
  • All dimensions are approximate. Manufacturing tolerances are available upon request.
  • (S) Designates the clamshell can stand on its base as well as hang from peg hooks.
  • (2) Indicates a 2-sided cavity

National Manufacturing Locations

As part of the Sinclair & Rush family of companies, we have thermoforming operations centrally located in St. Louis, Missouri and on the west coast in Portland, Oregon. Our line of stock clamshell packaging is available nationwide. Likewise, our custom solutions are manufactured in all locations. We are manufacturers of precision clamshell packaging and thermoformed trays.
