Round Header Clamshells
|

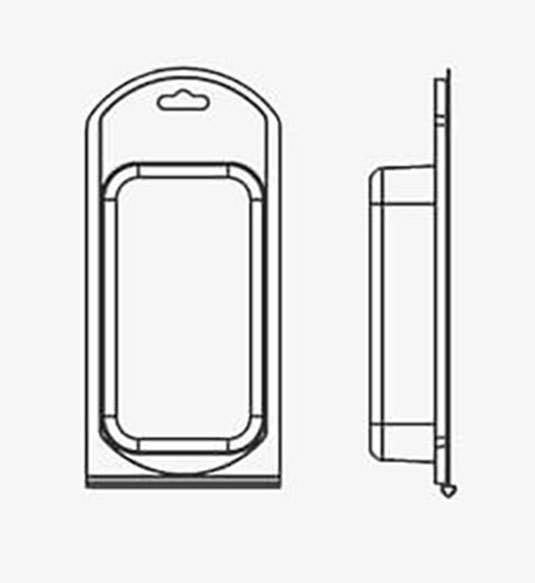

Can’t find what you need? 800-949-1141. Cavities are tapered from open to closed end. Cavity dimensions represent the smallest dimensions, which occur at the closed end. |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
 |
|||||||||
| Part # | Length “A” | Width “B” | Thickness | Length “C” | Width “D” | Depth “E” | Length “F” | Width “H” | Case Qty | ||
| 393TF | 8.375 | 3.875 | 0.015 | 4.250 | 2.187 | 0.807 | 7.890 | 3.264 | 400 | ||
| 392TF (S) | 8.375 | 3.875 | 0.020 | 4.625 | 2.375 | 1.700 | 7.890 | 3.264 | 350 | ||
| 394TF | 8.375 | 3.875 | 0.015 | 5.000 | 2.562 | 0.858 | 7.890 | 3.264 | 400 | ||
| 391TF (S) | 8.375 | 3.875 | 0.020 | 5.062 | 2.000 | 1.560 | 7.890 | 3.264 | 400 | ||
| 395TF | 8.375 | 3.875 | 0.015 | 5.250 | 2.687 | 1.281 | 7.890 | 3.264 | 400 | ||
- All dimensions are approximate. Manufacturing tolerances are available upon request.
- (S) Designates the clamshell can stand on its base as well as hang from peg hooks.
National Manufacturing Locations
As part of the Sinclair & Rush family of companies, we have thermoforming operations centrally located in St. Louis, Missouri and on the west coast in Portland, Oregon. Our line of stock clamshell packaging is available nationwide. Likewise, our custom solutions are manufactured in all locations. We are manufacturers of precision clamshell packaging and thermoformed trays.
